EASY AND ODORLESS

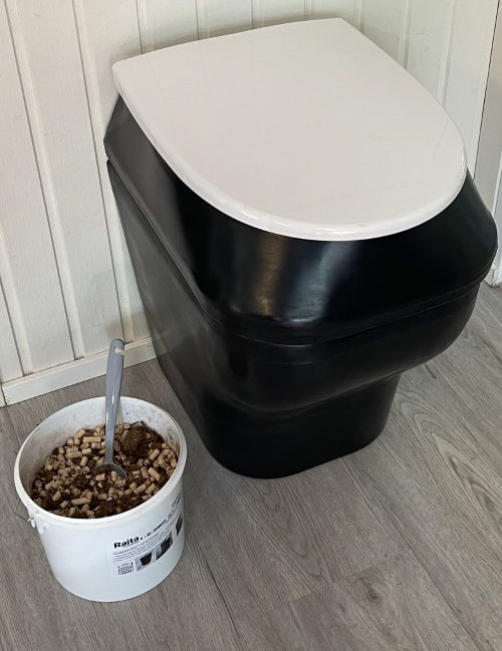

MODERN, EASY TO USE ENVIRO TOILET

• Composting with effective liquid treatment • DryMix compost bin eliminates odors and improves composting • ECO or SEP seat to choose • Adjustable ventilation • Effective liquid evaporation • Large capacity - change of van or emptying after 250 days of use (eg 5 people 50 days) • With extra compost van - doubled capacity (500 days) - simple composting • Durable material and technology (polyethylene plastic, warranty 10 years).

 INSTALLATION

200IS IS SUITABLE FOR MOST BUILDINGS

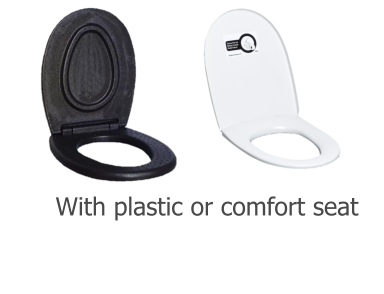

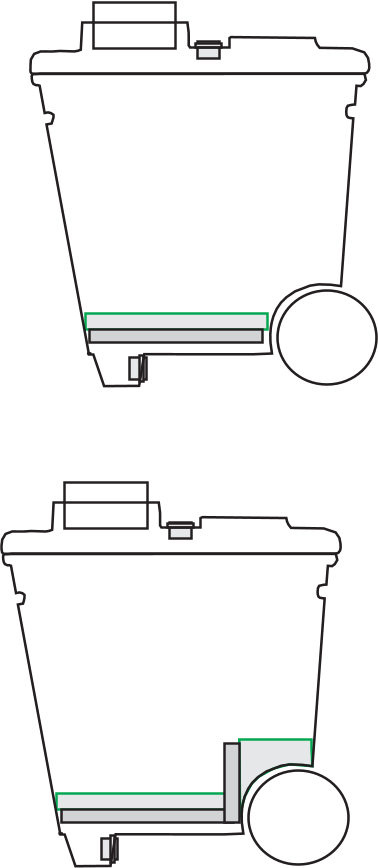

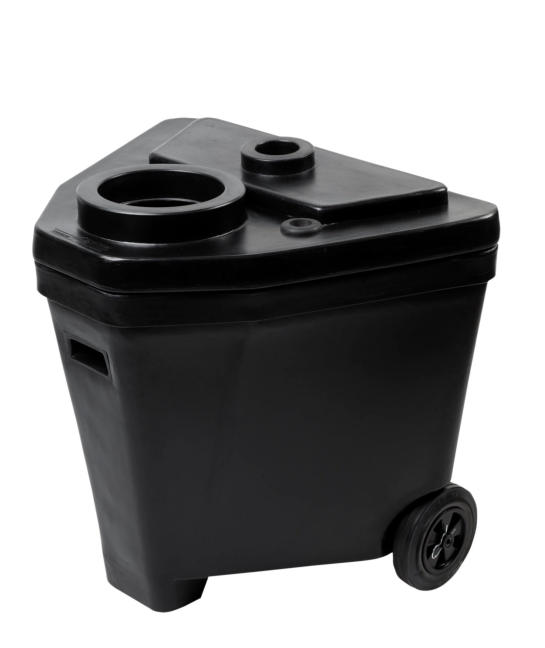

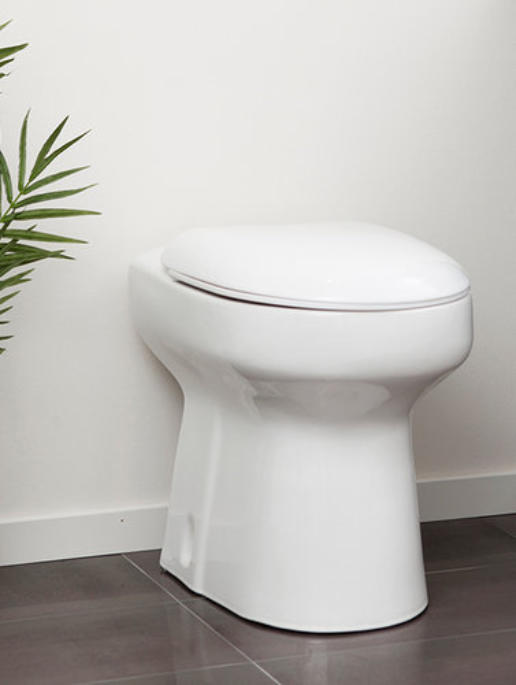

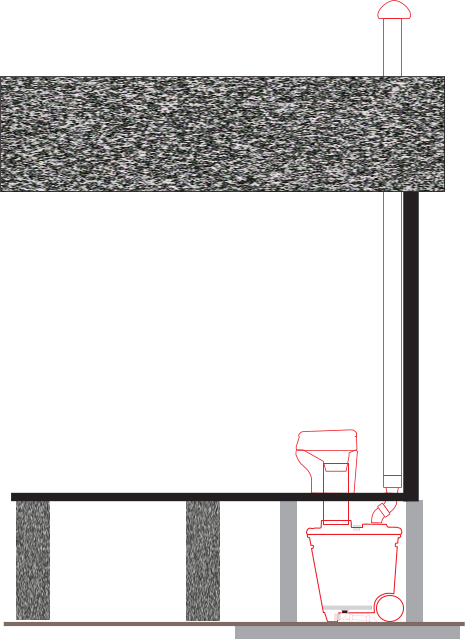

1) In a plastic seat, you can use an eco or sep top. They are the same size. In Eco, urine / liquid separation takes place at the bottom of the van. Sep at the top in the seat. Eco evaporates moisture up to 95%. There are also porcelain seats with eco or sep function. Sep operation involves rinsing the front bowl (approx. 1 dl), in which case pressurized water or the pipe of the water tank above it is also connected to it. 2) The composting van, connecting pipe and seat are installed. The composting van is placed under the seat. The space for the van needed can under the floor (min 92 cm high, area min 1mx1m, hatch or door out) or in a basement space. If 200IS is used in winter, it is advisable to thermally insulate the room and equip it with a thermostat-controlled (min. +10 degrees C) heating device. If the building is not kept warm, the space does not need to be insulated. Connecting pipes D200 are available in different lengths (0.5 m, 1.5 m 2 m) and can be shortened if necessary. 3)Install the ventilation pipe, delivery includes startconnector and ventilation hat D110 mm (see installation instructions), other necessary parts D110, ie straight pipe and any angles of 30 degrees are purchased separately. In heated buildings and winter use, we recommend insulating the air ventilation pipe from external parts. The 200 is available with a 12/230 V fan (optional) with adjustable operation. The fan is installed on the air ventilation pipe . 4)  Install the fluid pipe. The 200is works odorlessly even at high loads. Excess liquid is discharged into wastewater (eco) or collected as fertilizer liquid (sep) in a separate tank. Equip the system with an appropriate fluid collection / treatment system. The 200is can be equipped with a heating element (optional), which is installed under the tank. The heating element speeds up composting and enhances liquid evaporation. 5) The capacity of 200is  can be easily expanded. The extra composting van (optional) doubles the capacity. 6) Place a 3 cm layer of compost substance in the bottom of the compostvan, add substance with a bucket from a bag or container after use 1 dl.

USE

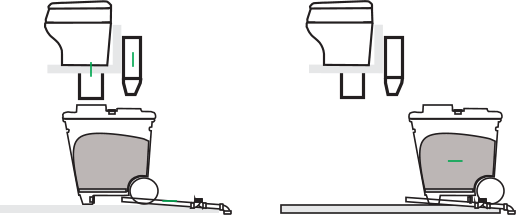

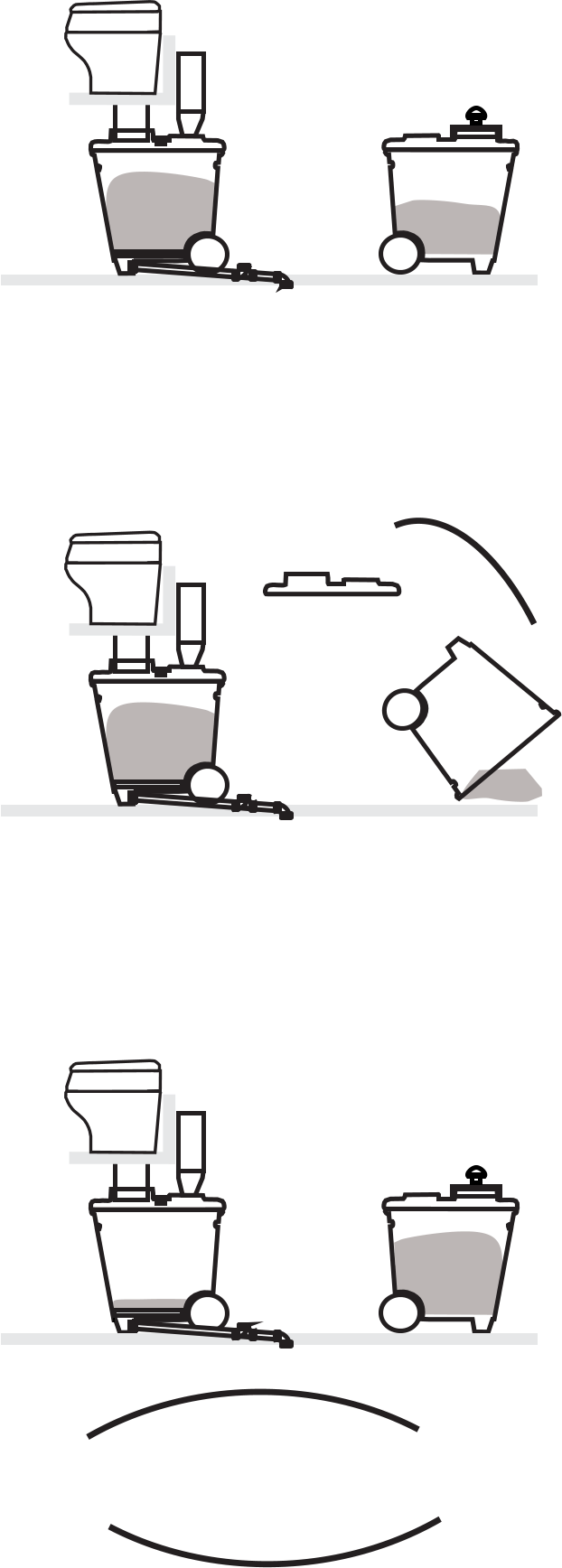

• Use compostsubstance in the bottom of the van then commissioning. • Add compost substance regularly to EV 200is (after each use). • Even out the compost in the van if necessary. Do not add to 200 is substances that interfere with composting. Only faeces, urine, toilet paper, compost substance and biodegradable household waste (biowaste) may be placed in 200is. In the lower part of the page there is a link to the operating and installation instructions.

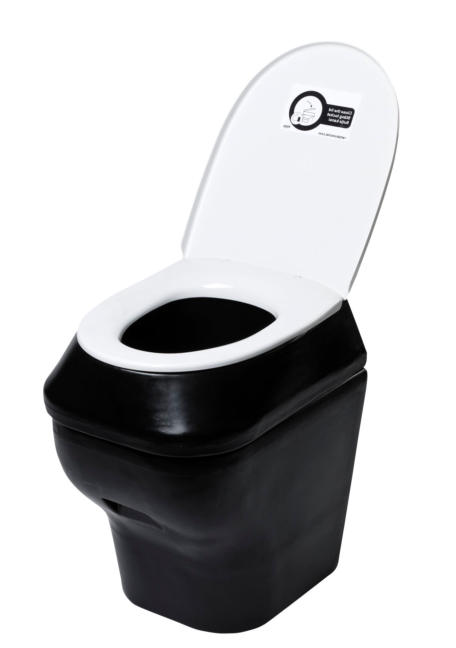

200IS - odorless environmental toilet. Easy

maintenable van composting system.

200IS         by Raita Environment
SEP
ECO
   -      raita.com/english
92 cm 50 cm WEBSHOP
