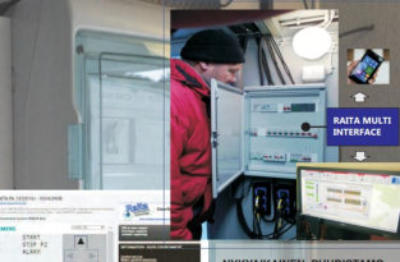

With remote monitoring - tailored to the target
Cost - effective and Self - adjusting operation
Efficient cleaning process:
In the process tank, bioprocesses; aeration of organic material, nitrification, denitrification takes
place one after the other. In addition to bioprocesses, a chemical process works simultaneously.
Bioprocess:

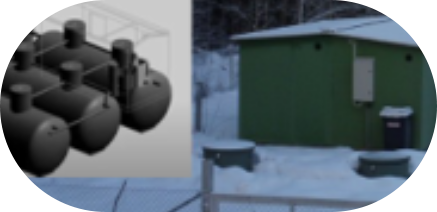

All wastewater from the propertys are led to a treatment plant. The first tank space is the pre-
treatment space for wastewater. The treatment plant monitors incoming wastewater volumes and
automatically adjusts the treatment plant's functions when the load changes.
When enough water has accumulated in the pre-treatment tank, aeration of the organic material

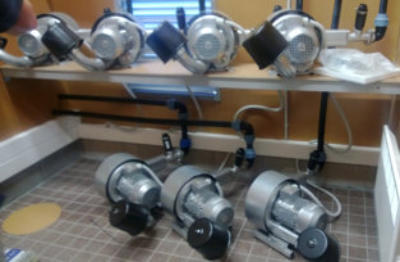

in the wastewater and nitrogen nitrification (fine bubble aeration) begin. During aeration, an air
pump is used to pump air through pipelines to a fine bubble spreader.
During aeration, the active sludge in the process tank is mixed with the pretreated wastewater,
whereby the bioprocess begins, whereby the microbial growth in the active sludge uses organic
material as food. At the same time, nitrification takes place, whereby the nitrogen changes state.
The air that is pumped out into the water leaves the treatment plant through drainage
ventilation.
Chemprosess:
While aeration is in progress, RAKE iron chemical is dosed into the treatment plant to separate
phosphorus. At the end of the aeration, a clarification period begins, during which the activated
sludge and phosphorus (reacted with the iron chemical) precipitate to the bottom of the process
tank.
Clarification:
At the end of the process, the water treated with BioKem processes is clarified. At the same time,
the last of the bioprocesses takes place, denitrification.
Pumping of purified water:
At the end of the clarification period, the clarified water, ie purified water, is pumped out of the
treatment plant using P2 pumps. The clarifier is pumped through the pipes, whereby a part of the

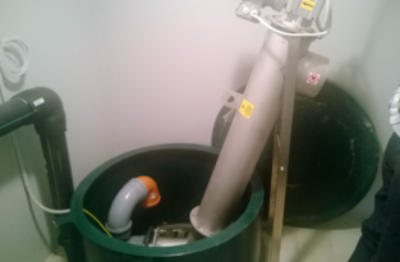

purified water is automatically separated in a monitoring vessel. It is easy to determine the
efficiency of the treatment plant operation from this sample.
Automatic functions in case of downtime:
The treatment plant is equipped with automatic functions to maintain biological readiness during
times without incoming wastewater (downtime). The treatment plant automatically supplies air
and wastewater to the process tank when the downtime continues. Thanks to the automatic
functions the downtime can be about 3 months without special measures.
Purified water is led to nature:
Purified water can be led directly to an open ditch or absorbed / filtered by simple post-filtration
in the terrain. The degree of purification is sufficient even for sensitive areas (near water source
and groundwater areas) Further treatment, ie the so-called third stage (eg
particularly sensitive near watersource areas, groundwater areas) can also be connected to the
treatment plant, which ensures even higher treatment and hygiene of the outgoing water with
UV light.
Sludge treatment:
The sludge to be removed from the treatment plant is odorless and stabilized in the
bioprocesses. It is generated in small amounts, 0.3 to 0.1% of the amount of purified wastewater
(1-3 l / m3).

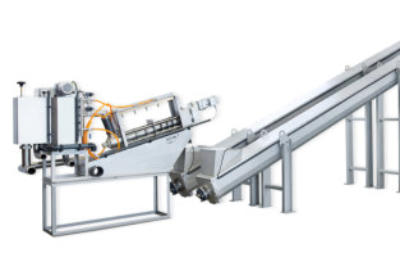

The sludge treatment equipment is connected to the treatment plant to remove excess sludge
from the process tank.
The sludge is removed to a separate sludge tank, from where it is emptied by a tanker for
municipal treatment. The tank size is dimensioned for emptying in suitable intervals.
The sludge can also be taken to a composter connected to the treatment plant, in which case no
emptying of the tanker is required.
